Reklez Suspension Works

2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels

$2,200.00
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels
  • 2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels

Reklez Suspension Works

2014-2018 Silverado Sierra Rear Air Bag 3 Link Wishbone Suspension Kit For Regular & Wide Wheels

$2,200.00
$2,200.00

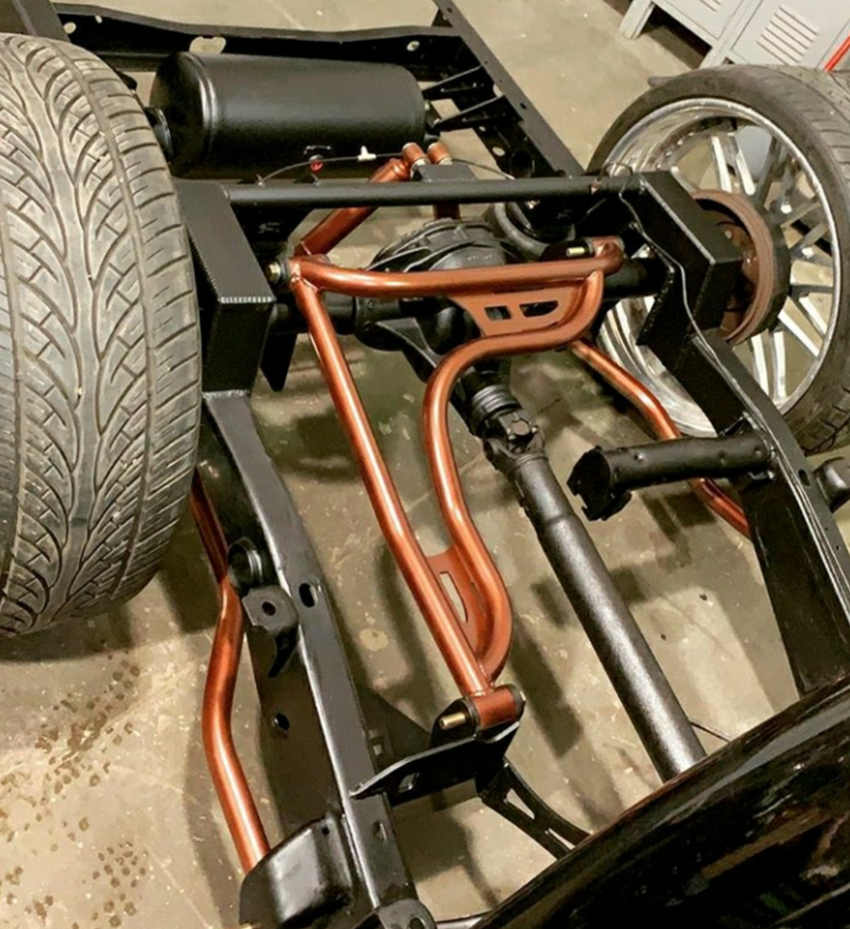

Lay out your 2014-2018 Silverado flat on the ground with Reklez Rear Air Suspension Kit. Front kit is also available be sure to check that out. This kit can be used with both regular wheels and billet wheels. Reklez rear airbag kit uses lines and holes on factory frame to speed up installation. Read entire description before ordering



 Features and Benefits:

  • Pre-welded brackets to save installation time.
  • Bracket are made of 1/4" thick, quality steel. Stronger than 3/16" steel.
  • 1.5" D.O.M Tubing for wishbones and links. Stronger and better than pipe steel.
  • 2" D.O.M Bar ends with grease fittings to maintain a quiet smooth working kit.
  • Brand recognition with Reklez "R" Logo on brackets
  • NOT a universal kit. Made specifically for your year, make, model and cab.
  • Brackets line up to factory locations to make installation smooth and simple.
  • Keeps your factory gas tank (no need to buy or install a fuel cell)
  • Designed to be used for 24" thru 30" wheels. Up to 12" wide. (custom modification to frame may be required.)
  • For guys running BIG Wheels can be used on both Max Lip and Reverse Lip wheels (frame modification may be required)
  • Links flow inside the frame rails for big wheel applications.
  • Rear kit works with both regular wheels and billet wheels. (no additional parts to buy if you upgrade to billet wheels later)
  • The kit tucks nicely under your bed so no need for over sized notch cover. \
  • This is an Original Reklez Suspension  Works Kit Not Imitation/ Replica.
  • Also Included Colored Copy of Detail Instructions for faster Installation.

Kit Includes: Wishbone, links, upper and lower shock mounts, shock studs, rear shocks, upper and lower bag brackets, & front and rear wishbone mounts, upper cross bar, bushings, sleeves, bolts, and lastly you get our raise gas tank brackets. **Kit Ships Out In Raw Steel Finish**

 Allow 6-8 weeks for build time. Build time does not include shipping time. Build time does not include holidays or time the shop is closed.

Due to the heavy nature of this kit there is a flat shipping of $120.00. Lower 48 States Only.

VERY IMPORTANT INFORMATION:

NOTCH:

Regular Monster Notch Used For Max Lip Wheels 12" wide with a 4" or More Backspace.

Narrowed Monster Notch Used For 12" Wide Wheels with 4" or less Backspace.

Drive Shaft:

*For Crew Cab Models and Ext Cabs **Two-piece drive shaft is required. Single Cabs don't require two piece driveshafts.

Airbags:

We recommend to use 2600 bags. You can use which ever brand you prefer. Please follow manufacturer steps to setup the correct bag compressed height when installing on our kit.

Wheels:

Our kit is designed to work with factory wheels and big billet wheels up to 12" wide. Use the notch guide up top to see which notch works best with your kit.

You may use wider wheels and may need modifications to your frame. Also narrowing of your rear end may be required.
